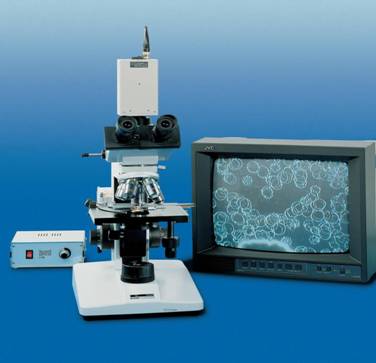

H 600 LL NH 100

for brightfield, darkfield and phase contrast, the universal equipment for darkfield

Description:

Stand:

Quadruple revolving nosepiece

Method of contrast:

Brightfield, darkfield and phase contrast

Tube:

Binocular, 30°

Eyepieces:

Widefield 10x/18

Objectives:

Plan 10/0,25, Plan Ph 20/0,40, Plan Ph 40/0,65, SPL 100/1,125-0,60 (Oil) with iris diaphragm

Magnification:

100 - 1000 times, optional up to 1250 times

Object stage:

Mechanical stage 160x130mm

Condenser:

Combination condenser NA 0,9 (HF, Ph); condenser NA 1,4 (DF)

Illumination:

12V/100W halogen, continuous regulation, collector II

Accessories:

2 Eyeguards, filterslider  II, conversion filter and filter VG 9, 2 centering keys, instruction for use, mains cable, dust cover

Order number:

008.0369.0
