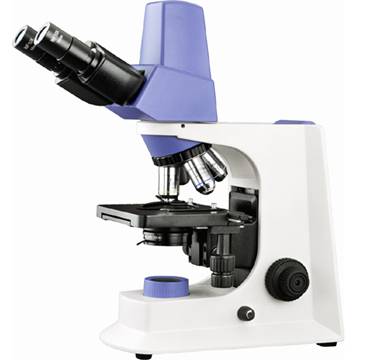

JD 400 DIGITAL MICROSCOPE |
|
Excellent optical performance and infinity optical system, equipped with the smart stand, sharp image, comfortable operation and high-resolution sensitivity feature inside CMOS camera, making work more suitable. It is widely used in the schools and research fields. |
|
NILPA CONSULTANCY |
|
2B-SHOBHANA APARTMENT, K V ROAD, OFF W S ROAD, DAHISAR (EAST) MUMBAI - 400 068 INDIA |
|
Specification |
JD 401 |
JD 402 |
JD 403 |
|
|
Optical System |
Infinity Optical System F=180mm |
● |
● |
● |
|
Viewing Tube |
Seidentopf binocular head,Inclined at 30 °, Rotatable 360°Interpupilary Distance: 50~75mm |
● |
● |
● |
|
Eyepiece |
WF10X/20mm (one with pointer) |
●● |
●● |
●● |
|
WF10X/18mm |
○ |
○ |
○ |
|
|
WF16X |
○ |
○ |
○ |
|
|
Objectives |
E Plan Achromatic 4X/0.10 |
● |
● |
● |
|
E Plan Achromatic 10X/0.25 |
● |
● |
● |
|
|
Plan Achromatic 20X/0.4 (S) |
○ |
○ |
○ |
|
|
E Plan Achromatic 40X/0.65 (S) |
● |
● |
● |
|
|
E Plan Achromatic 100X/1.25 (S,O) |
● |
● |
● |
|
|
Nosepiece |
Quadplex |
● |
● |
● |
|
Stage |
Double layers stage size: 145×140mm, Moving range: 76×25mm |
● |
● |
● |
|
Condenser |
Abbe NA=1.25 with iris diaphragm |
● |
● |
● |
|
Illumination |
6V/20W halogen lamp (85V~265V) |
● |
● |
● |
|
LED Illumination systems |
○ |
○ |
○ |
|
|
Filters |
Blue (built-in) |
● |
● |
● |
|
Green |
○ |
○ |
○ |
|
|
Yellow |
○ |
○ |
○ |
|
|
Gray |
○ |
○ |
○ |
|
|
Dark filed |
Dark filed condenser (N.A.0.9) |
○ |
○ |
○ |
|
Pixels |
1/2 " CMOS |
1.3M Pixels |
2.0M Pixels |
3.2M Pixels |
|
Resolution |
|
1280×1024 |
1600×1200 |
2048×1536 |
|
Frames per sec. |
|
15~30 fps |
15~30 fps |
15~30 fps |
