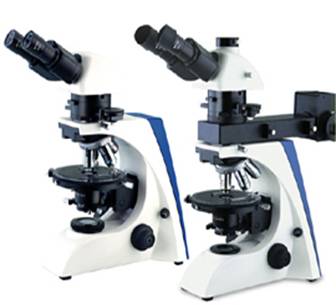

 POL 300   POLARIZING MICROSCOPE

Transmitted and incident light polarized microscopes are the POL 300 Series. The POL 300 Series Non-stress Plan optics and reflected illumination system can also be attached  Infinity Corrected Optical System makes the study of thin sections and other mounted samples fast and easy while delivering an excellent cost-to-performance ratio. Its perfect performance ensures the accuracy of every analysis.

POL 300 Polarizing microscope is one of the most professional instruments and is extremely useful for specialized medical and industrial applications, such as identifying crystals suspended in liquid, identifying minerals in core samples and detecting defects in semiconductors or finding stress points in metal, glass and other materials. The microscope is equipped with attachments such as gypsum(1λ), mica(1/4 λ ) test piece, quartz wedge and attachable mechanical stage

NILPA CONSULTANCY

2B-SHOBHANA APARTMENT,

K V ROAD, OFF W S ROAD,

DAHISAR (EAST)

MUMBAI - 400 068

INDIA



Phone:+91 22 2828 2830

Fax: +91 22 2828 0397

E-mail: info@nilpaconsultancy.in

Specification

POL 301

POL 302

POL 303

POL 304

Optical System

Infinity Optical System F=180mm









Head

Seidtopf binocular head inclined at 30°, Rotatable 360°, interpupilary distance: 50~75mm

●



●



Seidtopf trinocular head, inclined at 30°,Rotatable 360°,Interpupilary distance:50~75mm,Light distribution: 0:100 or 20/80



●



●



WF10X/18mm





●

●

Eyepiece

WF10X/20mm

●

●







WF10X/18 mm (Reticule 0.1mm)





●

●



WF10X/20 mm (Reticule 0.1mm)

●

●





Non-stress

4X/ 0.1

●

●

●

●

Infinity Plan Objective

10X/ 0.25

●

●

●

●

20X/ 0.40 (S)

●

●

●

●

40X/ 0.65 (S)

●

●

●

●

60X/ 0.80 (S)

○

○

●

●

Nosepiece

Quintuple(Adjustable Independence)

●

●

●

●

Polarizing Unit

Rotatable 360° (Module Type, Can Be Locked)

●

●

●

●

Bertrand Lens

Inbuilt, Center Adjustable

●

●

●

●

λSlip

First Class Red

●

●

●

●

1/4λSlip



●

●

●

●

Quartz Wedge

●

●

●

●

Revolving Round Stage

Rotatable 360°, Center Adjustable, Division 1°,

●

●

●

●

Vernier division 6’

Polarizing Attached Mechanical Stage

○

○

○

○

Condenser

Abbe N.A. 1.25, Non-stress

●

●

●

●

Polarizing Unit with Scale  Rotatable 360°, Can Be Locked

●

●

●

●

Transmission Light

6V 20W Halogen Lamp Koehler Illumination

●

●

●

●

6V 30W Halogen Lamp

○

○

○

○

Reflecting Light

12V 50W Halogen Lamp





●

●

2 A Fuse

Spare: 1 pc

●

●

●

●

Filter

Blue,

●

●

●

●

Amber, Green, Neutral

○

○

○

○

C-mount

0.5X,1X

○

○

○

○
