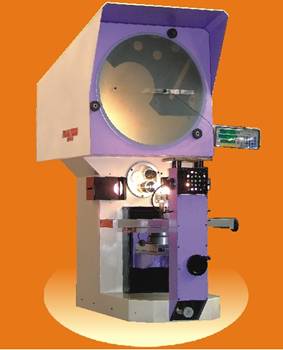

SPECIFICATIONS

JH-300

JH-400

JH-500

JH-600

SCREEN

300MM

400MM

500MM

600/800MM

Standard

Opaque glass screen with 90º cross line fitted on rotary ring operated by knob

Optional

Electronic Protractor switchable degree / decimal L. C. 0.01 degree/1 minute

Optics    Standard

10x, 20x

10x, 20x / 25x

10x, 20x / 25x

10x, 20x/25x

             Optional

50x, 100X

50x, 100x

50x, 100x

50x, 100x

             Mount

Screw Mount

Turret Mount with click stop

Work stage

300 x 200mm

500X 300mm

500X 300mm

500X 300mm

Measuring range

150 x 100mm

200 x 100mm

200 x 100mm

200 x 100mm

Linear Measurement

0-50mm, Micrometer head with zero adjustment, LC-0.001mm

Focusing

75mm

100mm

100mm

Helix angle

+12 degree

Maximum Accuracy

              Contour

+0.05%

+0.05%

+0.05%

              Surface

+0.75%

+0.75%

+0.75%

Illumination    Contour

24 V/150W halogen lamp with solid state light transformer for illumination adjustment

                  Surface

A set of 24V/150W Halogen lamp provides shadowless light on optical axis

Stand

Unique rigid pedestal system facilitates vibration free handling of specimen

Cooling system

FAN

OPTIONAL HARDWARE

OPTIONAL SOFTWARE

Dia View : DRO system with L. C. 1 Micron/5Micron

Workstage for DRO : System travel 100 x 100mm

GEOMETRICAL DRO 300 SERIES Microprocessor based geometrical read out system

150 x 150mm / 200 x 100mm / 200 x 150mm / 200 x 200mm

QC 5000: PC based geometrical readout system, mouse

Opto Edge sensor for accurate measurement

Drive with on screen graphical representation of part

Profile charts, Rotary table, V-Block, Centre holding device

Simple CAD interface
