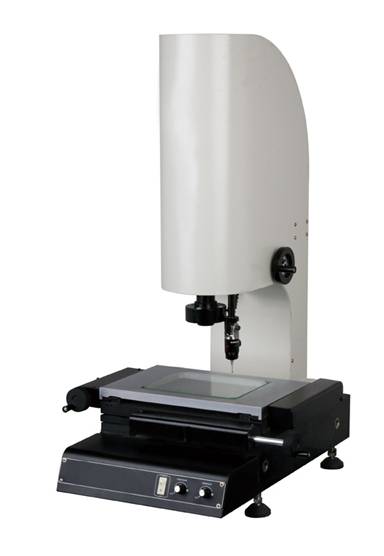

3D /2D Manual Video Measuring Machine  JVMM-P Series





It is mainly applied in 2D and 3D measurement fields, such as:  PCB, mobile phone fittings, linker , machine fitting, precision fixture ,it can measure 3D in non-contact video solution and contact probe function.

It is a necessary instrument for 3D measurement in college, research institute and metrology department.





3D Video measuring system is a photoelectric measuring system with high precision and efficiency. It is composed of a series of components, such as color CCD camera , CCD adapter , zoom lens , PC monitor, capture card , measuring software , precision linear scale, high precision worktable and precise probe.

APPLIED FIELDS

CHARACTERISTICS





Specifications	JVMM-1510P	JVMM-2010P	JVMM-2515P	JVMM-3020P	JVMM-4030P	JVMM-5030P
Metal table size	354x228mm	404x228mm	450x280mm	510x290mm	606x466mm	700x450mm
Glass table size	210x160mm	260x160mm	306x196mm	350x280mm	450x350mm	550x350mm
Travel: X,Y	150x100mm	200x100mm	250x150mm	300x200mm	400x300mm	500x300mm
Z-axis Travel	150mm	150mm	150mm	150mm	150mm	150mm
Resolution	0.0005mm	0.0005mm	0.0005mm	0.0005mm	0.0005mm	0.0005mm
Renishaw touch probe	MCP-K2(581-721)	MCP-K2(581-721)	MCP-K2(581-721)	MCP-K2(581-721)	MCP-K2(581-721)	MCP-K2(581-721)
X,Y-axis accuracy	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um
Measuring software	QM3.0	QM3.0	QM3.0	QM3.0	QM3.0	QM3.0
Nte weight	100kg	110kg	120kg	200kg	240kg	500kg
Dimension(mm)	700x600x900	700x600x900	760x600x900	770x590x1000	950x700x1100	1600x800x1660



Optional Accessories	Optional Accessories	Optional Accessories
Renishaw Probe MCP-K1	Navitar Click zoom lens	Rotary Table RT2
Renishaw Probe MCP-K3	Navitar Coaxial zoom lens	Rotary Table RT3
Moto Zoom Lens	Sony CCD camera MC3	Working Cupboard ST03



Standard Delivery	Standard Delivery	Standard Delivery
Measuring Software	CCD Camera MC1	Zoom Lens 0.7~4.5x
Calibration Block	Capture Card 7130	LED Lightsource
Length Block SGR100	Anti-dust Cover	Scale Transfer U3
Renishaw Probe MCP-K2

Accessories:

	1XCCD adapter(standard)		0.5XCCD adapter (option)		Working distance
Zoom lens	0.7～4.5X		0.7～4.5X
Zoom lens	Digital magnification	Visual field	Digital magnification	Visual field
0.5X(option)	15～95X	20～3.2mm	7.5～48X	40～6.4mm	175mm
1X(standard)	301～90X	10.6～106mm	15～96X	20～3.2mm	96mm
2X(option)	60～380X	5～0.8mm	30～190X	10.6～1.6mm	32mm



TECHNICAL SPECIFICATION
