PROJECTION MICROSCOPE

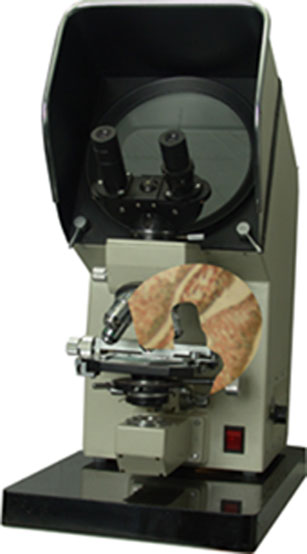

PROJECTION MICROSCOPE
The incorporation of precision glass circle, scale plate with minutely finished rotating mechanism and tropic proof high sensitive optical system enable the precise reading of test result without the aid of vernier.Projection Microscopes suitable for measurements and group discussions.
Projection Microscopes incorporate the most advanced technical features to make it versatile for a wide range of applications in Research and Industries. The Din Standard Plan Achromatic Optics produces uniformly images and exceptionally sharp resolution over the entire screen.
The 195 mm round graduated screen made from the finest glass is rotate able in 360° on ball bearing and has a fresnel lens behind it for brilliant and uniform intensity of projection throughout the screen area. The Co-axial mechanical stage is attached for comfortable and convenient manipulation of slides for research works, like checking linear measurement and comparison of contours etc. A magnification correction knob is provided in the microscope on which a compensating eyepiece moves to attain exact magnification in different objectives.
Projection Microscope is offered as Standard Polarizing Microscope and also with Binocular Head arrangments
Technical Features
Optical System :
Din Standard TC Series objectives, Optionally/Plan Optical System.
Main Body :
A most durable, sturdy & elegant designed body for utmost convenience to use and to accept several optional accessories as a multipurpose system microscope.
Focussing :
Coarse and fine focusing system. Coarse focus range 30mm and fine focusing reading to 0.002 mm.
Nose Piece :
Revolving quadruple/quintuple nose piece with ball bearings for perfect alignment
Stage:
With Co-axial Mechanical Stage low drive control, travel area 75-50mm
Condensor :
Movable Abbe Condensor N.A. 1.25 with iris diaphrasm and filter holder.
Illuminator :
Halogen illumination system having 12V/100W Halogen lamp with variable lightcontrol.
Observation :
Observation on screen /optionally binocular head.
Magnification Range :
100/125x to 1000x & also upto 1500x
The incorporation of precision glass circle, scale plate with minutely finished rotating mechanism and tropic proof high sensitive optical system enable the precise reading of test result without the aid of vernier.
Projection Microscopes suitable for measurements and group discussions.
Projection Microscopes incorporate the most advanced technical features to make it versatile for a wide range of applications in Research and Industries. The Din Standard Plan Achromatic Optics produces uniformly images and exceptionally sharp resolution over the entire screen.
The 195 mm round graduated screen made from the finest glass is rotate able in 360° on ball bearing and has a fresnel lens behind it for brilliant and uniform intensity of projection throughout the screen area. The Co-axial mechanical stage is attached for comfortable and convenient manipulation of slides for research works, like checking linear measurement and comparison of contours etc. A magnification correction knob is provided in the microscope on which a compensating eyepiece moves to attain exact magnification in different objectives.The Microscope is offered as Standard Projection Microscope Model SP-585 and SP-585A and also with Binocular Head arrangement
Projection Microscope is offered as Standard Polarizing Microscope and also with Binocular Head arrangments
Technical Features
Optical System :
Din Standard TC Series objectives, Optionally/Plan Optical System.
Main Body :
A most durable, sturdy & elegant designed body for utmost convenience to use and to accept several optional accessories as a multipurpose system microscope.
Focussing :
Coarse and fine focusing system. Coarse focus range 30mm and fine focusing reading to 0.002 mm.
Nose Piece :
Revolving quadruple/quintuple nose piece with ball bearings for perfect alignment
Stage:
With Co-axial Mechanical Stage low drive control, travel area 75-50mm
Condensor :
Movable Abbe Condensor N.A. 1.25 with iris diaphrasm and filter holder.
Illuminator :
Halogen illumination system having 12V/100W Halogen lamp with variable lightcontrol.
Observation :
Observation on screen /optionally binocular head.
Magnification Range :
100/125x to 1000x & also upto 1500x
Specifications:
JP-500
JP-501
NP-502
NPOL-503
NP-504
Projection Screen
195 mm Rotatable 360°Objectives
4x/5x,10x,
20x &
40x/45x4x/5x,10x,
20x,40x/45x
,60x4x/5x,10x,
20x,40x/
45x,60xP4x/5x,P10x,
P20x&P40
x/45xP4x/5x,P10x,
P20x&
P40x/45xOptics
Standard
OpticsDin Standard
TC SeriesDin Standard
TC SeriesDin Standard Polarising Objective
Din Standard Polarising
ObjectiveEye Piece
Compensating
Compensating
Compensating
and
WF10x PairedCompensating
Compensating
and
WF10x PairedMagnification Range
125x to 1000x
100x to 1500x
100x to 1500x
125x to 1000x
125x to 1000x
Illuminator Halogen Lamp 12V/100W
Binocular Head
Polarising
