Bench profile projector , DRO

vertical profile projector, DIGITAL READ OUT

horizontal Profile Projector, ANGLE DRO

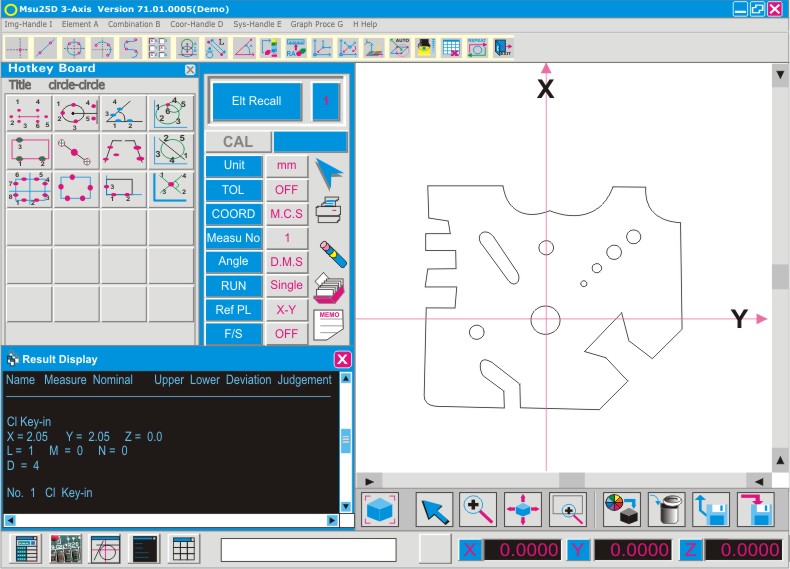

QC-200, PC BASED SOFTWARE , SHADOW GRAPH, DIGITAL READ OUT

COMPLETE CATALOGUE

BENCH PROFILE PROJECTOR
300mm Screen Size
360° Rotatable Screen
10x & 20x Objective
150mmx 150mm Work Stage
50mm x 50mm Travel of Work Stage
25mm x 25mm Travel of Stage through Micrometer Head

More Information
CATALOGUE
BENCH pROFILE PROJECTOR WITH LCD DRO
300mm Screen Size
360° Rotatable Screen
10x & 20x Objective

MEASUREMENT ACCURACY 1MICRON/ 5MICRON/ 10MICRON

Optional Magnification: 50x & 100x

More Information
BENCH PROFILE PROJECTOR JP300mm, JP400mm, JP500mm
BENCH PROFILE PROJECTORS
SCREEN SIZE 300mm, 400mm, 500mm, 600mm, 800mm
MEASUREMENT ACCURACY 1MICRON/ 5MICRON/ 10MICRON
MEASUEMENT BY: MICROMETER DRUM, DIGITAL MICROMETER, D.R.O.(DIGITAL READ OUT),                         GEOMETRICAL DRO
STANDARD MAGNIFICATION: 10X, 20X,
OPTIONAL             : 50X, 100X
                                                 MORE DETAILED INFORMATION
                                                CATALOGUE

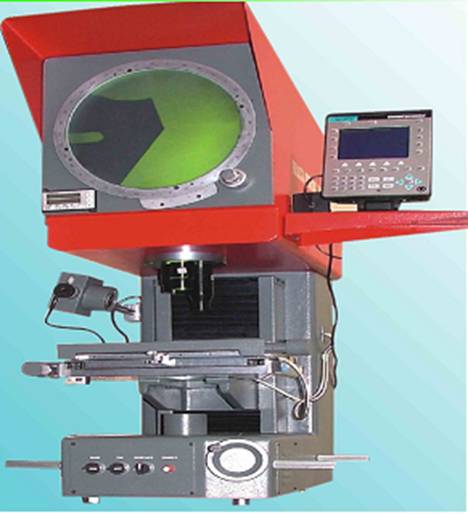

VERTICAL / FLOOR PROFILE PROJECTOR   JV300mm, JV400mm, JV500mm, JV600mm

SCREEN SIZE 300mm, 400mm, 500mm, 600mm, 800mm
MEASUREMENT ACCURACY 1MICRON/ 5MICRON/ 10MICRON
MEASUEMENT BY: MICROMETER DRUM, DIGITAL MICROMETER, D.R.O.(DIGITAL READ OUT),                         GEOMETRICAL DRO
STANDARD MAGNIFICATION: 10X, 20X,
OPTIONAL             : 50X, 100X

GEOMETRICAL DRO

MORE DETAILED INFORMATION

CATALOGUE
HORIZONTAL PROFILE PROJECTOR JH 300, JH 400, JH 600,JH 800
HORIZONTAL PROFILE PROJECTOR
screen size 300mm, 400mm, 600mm, 800mm, Objectives 10x, 20x, 50x, 100x & Many more attachment click at
MORE DETAILED INFORMATION

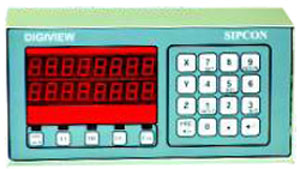

DIGITAL READ OUT SYSTEM

Digital readout is a multifunctional process system which is suitable for the measurement of digital linear scale and video measuring. It is widely used for Profile projector, measuring microscope, CCD measuring machine, other measuring instrument and so forth. In especially, it can be used in conjunction with profile projector, and can finish the measuring of the complicated geometry work-pieces. It includes coordinate skew, construct the original point of coordinate system, and through collecting the sampling points to measure work-pieces and so on.
MORE DETAILED INFORMATION
SHADOW GRAPH - PROFILE PROJECTOR--E 100
Profile Projector / Shadow graph: It is a compact & economically priced model of Bench Type Profile Projector suitable for all types of measurements and inspections, specially designed for small scale industries & engineering colleges.
Focusing: Through rack & pinion system
Screen: Antiglare hard glass 200mm dia with cross line, 360 degree rotatable.
Nosepiece: Single nose or optionally provided quadrapule ball bearing.
Magnification: 10x,/ 20x,/ 50x
Work Stage: 150x150 mm with X-Y movement of 25x25 mm
Working distance: 30 mm approx. under 10x magnification
Micrometer: Zero adjustment, 25mm graduation with least count 0.005mm
Illumination: Counter illuminator of 12V-100W & 2 surface lamps of 6V/20W.
Optional: Vinyl Cover, duster & fuse 2 nos.
MORE DETAILED INFORMATION

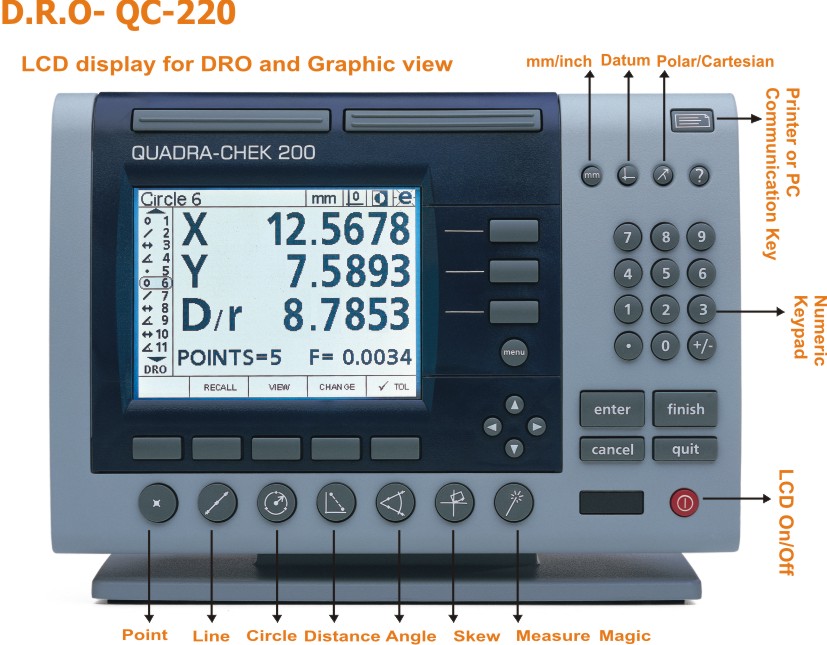

Geometrical digital read out QC 200 series
Geometrical Digital Read out QC-200 series. All type of Geometrical Parameters can be measure like point, Line, Distance, Angle, Arc, Skew, Magic bar, measurement will be in mm/ inch. data can be send on print or computer through RS232 Port. programmable
TECHNICAL DETAILS

.
Accessories for profile projector

Liear Digital read out System, Profile Chart, V Block, Center holding Devicecalibration Scale, vertical Holding Devices Footswitch , Motorising system for Profile Projector DETAILS
